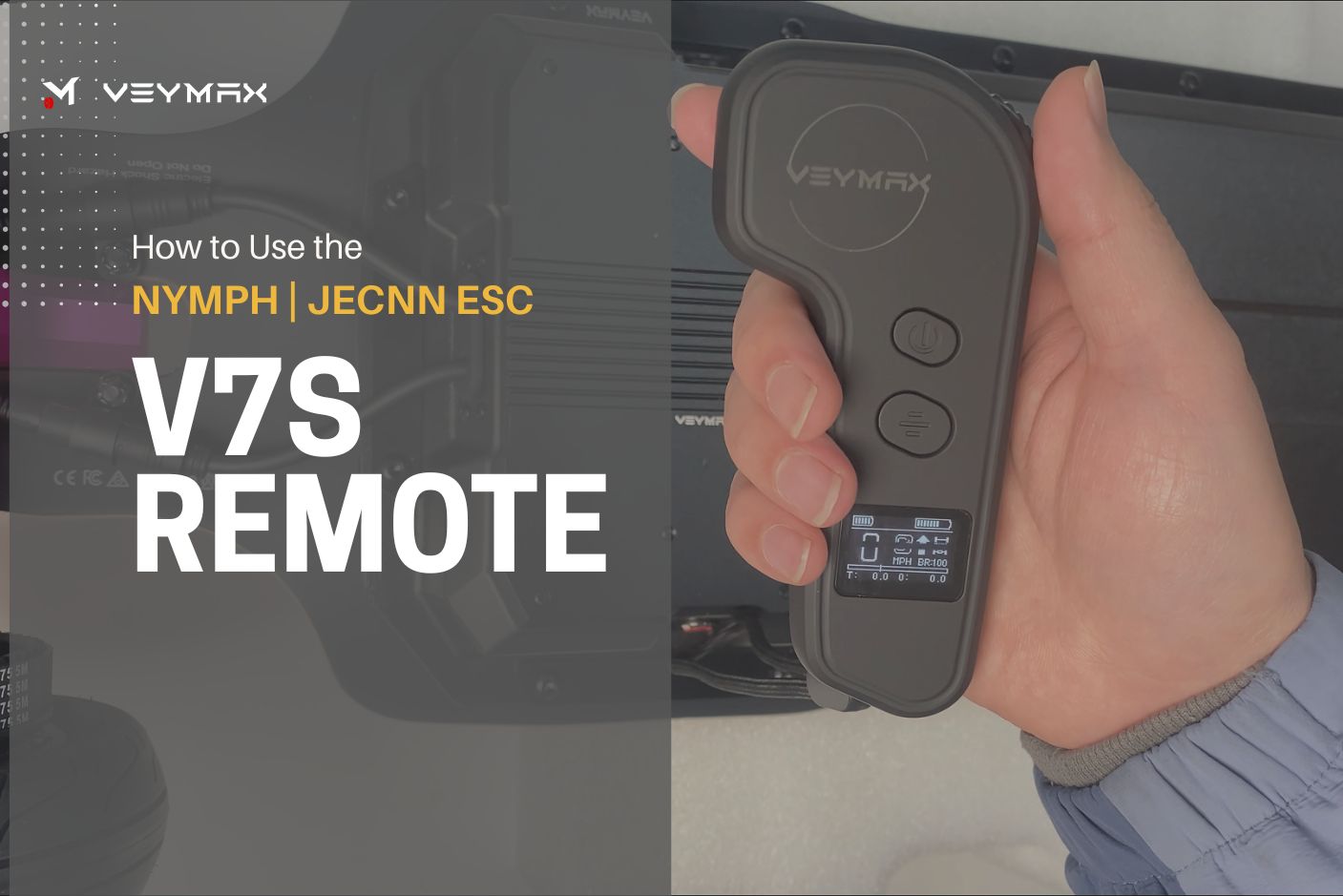

The v7s remote control is a versatile and user-friendly device designed to enhance your electric skateboarding experience. Compatible with JECNN's Nymph all terrain electric skateboard controllers, the v7s offers precise control and a range of advanced features. Whether you're a beginner or an experienced rider, this guide will help you unlock the full potential of your v7s remote control.
I. Basic Operations
1. Power On/Off
Power On: Press the power button for 3 seconds to turn on. If the power button is held down, the remote will enter pairing mode. To exit pairing mode, turn off and restart the device.
Power Off: Press the power button for 3 seconds to turn off.
2. Pairing the Remote
Press and hold the power button for 7 seconds until the power light flashes red rapidly, indicating that the ESC has entered pairing mode.
3. Thumbwheel Operation
Push the thumbwheel forward to accelerate and pull it backward to brake
II. Function Settings, Requires Power On
- Gear Switching: Press the function button once to switch gears.
- Direction Switching: Press the function button twice to switch directions.
- Cruise Control: Roll the wheel forward and press the power button once to enable cruise control.
III. Menu Settings
4. Enter Settings Menu
Hold the brake and press the power button eight times to enter the settings menu.
5. Menu Navigation
- Scroll the wheel downward to navigate through menu options.
- Press the power button to confirm a selection.
- Press the function button to exit the menu.
- Press the function button once to go back or cancel settings.
6. Menu Options
Scroll through the following options using the thumb wheel:
a. SPEED MODE
b. MOTOR RUN MODE
c. MAX SPEED
d. BATT OUT MAX
e. BATT CELLS
f. BATT TYPE
g. DRIVER FREQ
h. MAX BRAKE
i. MOTOR RUN DIR
j. L MODE REF
k. L MODE CUR
l. L SPEEDUP LINE
m. L BRAKE LINE
n. E MODE REF
o. E MODE CUR
p. E SPEEDUP MODE LINE
q. E BRAKE LINE
r. S MODE REF
s. S MODE CUR
t. S SPEEDUP LINE
u. S BRAKE LINE
v. S+ MODE REF
w. MODE CUR
x. S+ SPEEDUP LIN
y. S+ BRAKE LINE
z. RESTORE PARA
aa. BLE UNB ING
IV. Device Pairing
1. Nymph - JECNN ESC
- REMOTE MODE: 2WD
- NPH/KPH
- MOTOR TYPE: BELT
- Wheel Diameter: 160
- GEAR RATIO: 4
- MAGNETIC POLES: 7
- BRAKE LEVEL: 100%
By following this guide, you should be able to master the various functions of the v7s remote control. If you encounter any issues during use, please contact after-sales service at <service@veymax.com>. We hope this guide helps you make the most of your electric longboard adventures!
